The People Inside Web App for the IMMOTION Cloud Edition enables organisations to view the number of people currently inside a venue. This feature is ideal for venues that are required to monitor capacity numbers in real time to comply with government regulations, liquor licensing laws, venue capacity limits, etc.
Our wireless people counters record the number of people entering and exiting a venue and automatically send the data every minute to the IMMOTION Cloud. We also offer Instant People Counters that relay data in real time without any lag to ensure you’re getting accurate to-the-second patron numbers.
From this information, the People Inside Web App calculates and displays the total number of people in the venue at any one time, and supports single and multiple entrance/exit points.

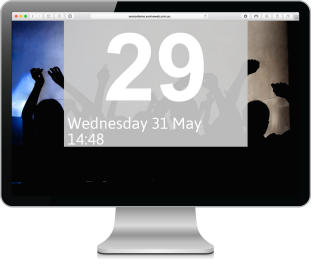

The live count total is displayed on a responsive designed web page compatible with TV screens, desktops, tablets and smartphones. The live count total constantly updates higher or lower depending on the number of people entering or leaving the venue.
As our people counters only count and do not identify people, the privacy of people passing through our counters is assured.
General Features
Package Features
People Counting Sensors
Wireless Infrared People Counter
The wireless counters consist of 2 doorway sensors (transmitter and receiver) that generate an infrared beam across an entrance up to 8 metres wide. Each time a person walks through the entrance and breaks the infrared beam, the count increases by one. The wireless counters are bi-directional and will count both 'In' and 'Out' directions and provide totals for each direction.
The doorway sensors come with mounting plates that allow them to be fixed to a flat surface, using either screws or double sided mounting tape. The counters use standard AA batteries that will last up to 2 years with standard usage. Additional brackets can be purchased for more complex mounting configurations.

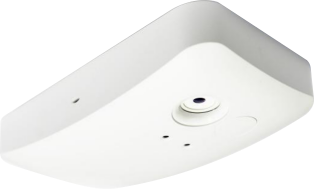

Wireless Overhead Thermal Sensor
Our Overhead Thermal People Counters fit discreetly into the ceiling facing downwards and count the people that pass underneath using thermal technology. The sensors are designed to detect the heat emitted by people passing underneath it as infrared radiation.
The units contain imaging optics, sensors, signal processing and interfacing electronics all within a discretely designed moulded housing. High-performance algorithms allow you to count people accurately even in high-volume areas. You can also network multiple sensors, dividing up areas however you choose to evaluate their use in whatever level of detail you need. For wide opening configurations you can implement additional overhead "nodes" to provide a counting coverage over an extended area.
SNG Hub (Sensor Network Gateway)
SNG Hub (Sensor Network Gateway)
The SNG Hub wirelessly communicates with the people counting sensors to receive the latest, up to date, count data from one or more entrances within a 30 metre radius. Once received, the count data is automatically sent at regular intervals to the IMMOTION™ software where the count data can be viewed/exported by hour/day/week/month year totals.
The SNG Hub is available in two editions:
Ethernet (SNG10E) Edition
The Ethernet edition (SNG10E) is designed to connect directly into your local network via an Ethernet cable. The SNG10E is ideal for situations where there are Ethernet ports available within a 30 metre range of the entrance where the doorway sensors are installed. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius.
3G (SNG3G) Edition
The 3G Edition (SNG3G) utilises a cellular 3G connection to communicate through to the IMMOTION™ software. The SNG3G is ideal for situations where there is no Ethernet ports available near the people counting sensors. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius. The SNG3G requires a full size 3G SIM (not included) and has been tested with the Telstra 3G Mobile Data SIM - please contact us if you would like us to test with an alternative Australian 3G carrier.
Occupancy Software
IMMOTION™ Software
Our IMMOTION™ software allows users to analyse count data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours and staffing requirements, and helps calculate customer/sales conversion ratios.
The IMMOTION™ software/database is optimised to handle multiple locations and/or people counters for easy viewing and overall analysis. The IMMOTION™ software/database is scalable so that additional SNG Hub's and/or door counters can be added at any time.
People Inside Application

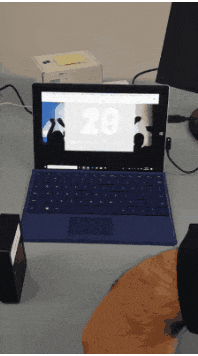

The People Inside web app calculates and displays the total occupancy of people in a venue at any one time. The live occupancy number is displayed on a responsive designed web page compatible with TV screens, desktops, tablets and smartphones.
Optional Extras:
Wireless Range Extender
Range Extender for Wireless People Counters
The Range Extender increases the Wireless Range between a Wireless People Counter and the SNG Hub.
With the Wireless People Counter solution the SNG Hub captures the counting data from one or multiple counters and uploads it to a local or remote server every minute. This requires the SNG Hub to be located anywhere within a range of up to 30 metres (unobstructed) from the Wireless People Counter. Implementing the Range Extender effectively increases the range between the SNG Hub device and a single Wireless People Counter by up to a further 30 metre range.
The Range Extender has been designed for ease of installation: when a SNG Hub is found the LEDs display the signal strength of the detected device. We recommend the Range Extender is installed in a high position to improve the wireless signal via line of sight.
