Wireless People Counters
Our battery powered wireless technology offers a reliable, user-friendly and affordable people counter solution. The counters have 2 sensors, a transmitter and receiver, which are positioned across an entrance (max 6m) and generate an infrared beam that is broken by people passing through.
The count data is transmitted every 10 seconds to our Sensor Network Gateway (Ethernet or 3G) unit that can be located anywhere within a 30 metre range (Repeater available to extend the range by another 30 metres). The Sensor Network Gateway unit stores the count data and forwards it as data packets at regular intervals to the 'IMMOTION™' reporting application hosted on-site or in the cloud.
The Sensor Network Gateway has the ability to collect the count data for up to 10 door counters.
Our 'IMMOTION™' software allows users to analyze the data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours and staffing requirements, and helps calculate customer/sales conversion ratios.
The 'IMMOTION™' software/database is optimized to handle multiple locations and/or people counters for easy viewing and overall analysis. The 'IMMOTION™' software/database is scalable so that additional Sensor Network Gateway's and/or door counters can be added at any time.
General Features
- Easy installation
- Long battery life
- Distortion indication
- ENI: Enhanced Noise Immunity
- European designed and built
- Exceptional after sales support
- 1 Year Warranty
- No ongoing costs
Package Features
People Counting Sensors
Wireless People Counters
The wireless counters consist of 2 doorway sensors (transmitter and receiver) that generate an infrared beam across an entrance up to 6 meters wide. Each time a person walks through the entrance and breaks the infrared beam, the count increases by one. The wireless counters are bi-directional and will count both 'In' and 'Out' directions and provide totals for each direction.
The doorway sensors come with mounting plates that allow them to be fixed to a flat surface, using either screws or double sided mounting tape. The counters use standard AA batteries that will last up to 2 years with standard usage. Additional brackets can be purchased for more complex mounting configurations.
Sensor Network Gateway
Sensor Network Gateway
The Sensor Network Gateway (SNG) wirelessly communicates with the people counting sensors to receive the latest, up to date, count data from one or more entrances within a 30 metre radius. Once received, the count data is automatically sent at regular intervals to the IMMOTION™ software where the count data can be viewed/exported by hour/day/week/month year totals.
The Sensor Network Gateway is available in two editions:
Ethernet (SNG10E) Edition
The Ethernet edition (SNG10E) is designed to connect directly into your local network via an Ethernet cable. The SNG10E is ideal for situations where there are Ethernet ports available within a 30 metre range of the entrance where the doorway sensors are installed. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius.
3G (SNG3G) Edition
The 3G Edition (SNG3G) utilises a cellular 3G connection to communicate through to the IMMOTION™ software. The SNG3G is ideal for situations where there is no Ethernet ports available near the people counting sensors. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius. The SNG3G requires a full size 3G SIM (not included) and has been tested with the Telstra 3G Mobile Data SIM - please contact us if you would like us to test with an alternative Australian 3G carrier.
To use the SNG3G you will also need to be ensure that the server you install IMMOTION™ software onto is externally accessible over the internet.
IMMOTION™ Software
IMMOTION™ Software

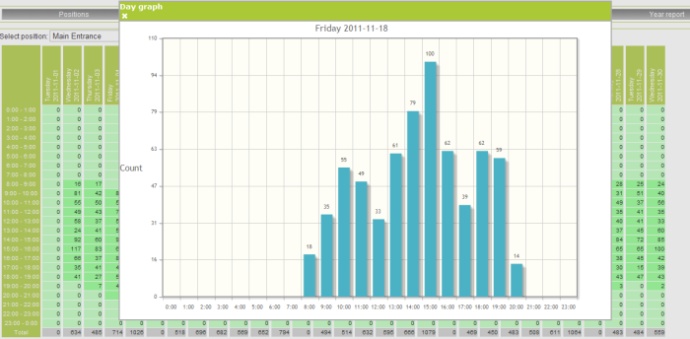

Our IMMOTION™ software allows users to analyse count data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours and staffing requirements, and helps calculate customer/sales conversion ratios.
The IMMOTION™ software/database is optimised to handle multiple locations and/or people counters for easy viewing and overall analysis. The IMMOTION™ software/database is scalable so that additional Sensor Network Gateway's (SNG) and/or door counters can be added at any time.
IMMOTION™ Video Overview
Optional Extras:
Mounting Brackets
Mounting brackets for Wireless People Counters
Wireless people counters include a mounting plate as part of the product design for easy installation on flat surfaces. The following are a list of optional mounting brackets that can be purchased for Wireless People Counters
Metal Rotational Bracket (x2)
The versatility of the pivoting door sensor holder makes fitting simple in entrances where the mounting location may not be at right angles. These brackets are also provided in a black finish and supplied as a set of two.
Make Inquiry
Metal Angular Bracket (x2)
Suitable for door/frame mounting. Use when fixing the people counters flush against a wall is not possible. This heavy duty bracket also protects your counters from getting knocked out of alignment. These brackets are supplied as a set of two.
Make Inquiry
Wireless Range Extender
Range Extender for Wireless People Counters
The Range Extender increases the Wireless Range between a Wireless People Counter (Network) and the Sensor Network Gateway (SNG).
With the Wireless People Counter (Network) solution the Sensor Network Gateway device captures the counting data from one or multiple counters and uploads it to a local or remote server every minute. This requires the Sensor Network Gateway to be located anywhere within a range of up to 30 metres (unobstructed) from the Wireless People Counter. Implementing the Range Extender effectively increases the range between the Sensor Network Gateway device and a single Wireless People Counter by up to a further 30 metre range.
The Range Extender has been designed for ease of installation: when a SNG device is found the LEDs display the signal strength of the detected device. We recommend the Range Extender is installed in a high position to improve the wireless signal via line of sight.
Make Inquiry
Number of people in a venue at any one time
Our people counters record the number of people entering and exiting a venue in real time. From this information, we can then calculate and display the total number of people in the venue at any one time. This feature is ideal for venues that are required to monitor capacity numbers in real time to comply with liquor licensing laws, venue capacity limits, etc.
The live count total is displayed on a custom styled web page that is compatible with any web-enabled PC, laptop, tablet or smartphone.
The live count total constantly updates higher or lower depending on the number of people entering or leaving the venue. In addition, a separate 'IN' and 'OUT' count total is collected and can be viewed in an hourly, daily, weekly, monthly and yearly breakdown.
As our people counters only count and do not identify people, the privacy of people passing through our counters is assured.
IMMOTION™ Cloud Hosting
EvolvePlus provides IMMOTION™ on a hosted turnkey cloud solution, leaving you free to focus on what you do best without the burden of ensuring the IMMOTION™ application is stable, maintained, and secure.
Our cloud solution is run on Amazon's secure and scalable AWS platform based out of Sydney Australia for optimal speed and performance.
Contact for pricing
-
Brochures - People Counters
Video Demonstration
Contact for pricing
USB People Counters
Our completely wireless USB People Counting System offers a reliable, user-friendly, and affordable tool that will help almost any type of service provider operate more efficiently. The transmitter units transmit infrared beams to the receiver unit. When someone passes between the 2 units and breaks the infrared beams, the internal counter increases by one.
The people count data is simply collected by connecting any USB Stick to the counter via the supplied adapter cable. The read-out from the counter is a complete memory dump. The advanced viewing software ensures that only the newest data is only ever uploaded therefore reducing the pressure to take 'final reads' to gain accurate daily/weekly/monthly/yearly figures. The data can be viewed and analysed in table or graph form.
Our unique USB People Counters are suitable for remote type sites like toilet blocks, outdoor pathways/tracks, car parks, markets and equally suitable for shops, galleries, libraries when wiring/networks are problematic or costly.
General Features
- Easy installation
- Long battery life (AA Batteries)
- Distortion indication
- USB adapter cable and flash drive supplied
- ENI: Enhanced Noise Immunity
- Remote data viewing
- Exceptional after sales support
- 1 Year Warranty
- No ongoing costs
Optional Extras:
Weatherproof Casing
A custom designed weatherproof casing is available for purchase with our USB People counters. Molded from the finest commercial grade plastic, the weatherproof and dust-proof case is is designed to withstand the harshest outdoor elements whilst providing superior tamper-proof security to the USB counter sensors. (available in a two piece set).
Make Inquiry
Mounting Brackets
Mounting brackets for USB People Counters
USB people counters include a mounting plate as part of the product design for easy installation on flat surfaces. The following are a list of optional mounting brackets that can be purchased for USB People Counters
Metal Rotational Bracket (x2)
The versatility of the pivoting door sensor holder makes fitting simple in entrances where the mounting location may not be at right angles. These brackets are also provided in a black finish and supplied as a set of two.
Make Inquiry
Metal Angular Bracket (x2)
Suitable for door/frame mounting. Use when fixing the people counters flush against a wall is not possible. This heavy duty bracket also protects your counters from getting knocked out of alignment. These brackets are supplied as a set of two.
Make Inquiry
Total count of people in a room/venue
This particular model of USB People Counter offers an accurate means of managing the total capacity of people within a room/venue. The digital display shows the current number of people in the room/venue by simply subtracting the number of people exiting from the number of people entering, whilst recording the historic visit data for detailed analysis by minute, hour, day, week, month and year.
The count number on the digital display constantly updates higher or lower depending on the number of people passing through the counter in either direction. The detailed visitation data is also recorded and may be viewed in reporting software (supplied) long after the event is finished by transferring the data with the aid of a USB storage device (supplied).
Set-up and installation is quick and easy.
Since our people counter system only counts and does not identify people, the privacy of people passing through the counters is guaranteed.
Contact for pricing
Features
- Long battery life
- Distortion indication
- Easy to read count value
- European designed and built
- 1 year warranty
Specifications
- Dimensions - 116.4 x 68.6 x 22.3 mm
- Material - ABS Plastic - Black
- Power supply - 2 x 1.5V AA
- Power consumption - approximately 60 uA
- Battery life - up to 2 years
- Maximum Distance – 6 Metres / 19 feet (unobstructed)
Included:
- Transmitter / Receiver
- Magnet (key ring) for resetting count value back to zero
- USB cable
- USB flash drive
- Screwdriver
- 2 x Mounting plate (plastic)
- Four 1.5v AA batteries
- Quick installation guide
Software
- Microsoft Windows 2000 or later
- Microsoft .NET 2.0
IMMOTION™ Cloud Hosting
EvolvePlus provides IMMOTION™ on a hosted turnkey cloud solution, leaving you free to focus on what you do best without the burden of ensuring the IMMOTION™ application is stable, maintained, and secure.
Our cloud solution is run on Amazon's secure and scalable AWS platform based out of Sydney Australia for optimal speed and performance.
Contact for pricing
-
Brochures - People Counters
Contact for pricing
Display People Counters
Our battery powered Display People Counters (LCD) consist of two small boxes (transmitter and receiver) mounted on either side of an entrance. Once the transmitter and receiver are aligned with each other, an infrared beam is transmitted across the entrance. When someone moves through the entrance and breaks the infrared beam, the total count value increases by one.
The receiver unit of our Display People Counter is equipped with a LCD screen showing the current count. The displayed count can easily be reset back to zero by running a small supplied magnet across the top of the receiver.
The simple end-user installation and maintenance of our systems eliminates technical support costs. Our People Counting Systems are completely wireless and battery powered.
Features:
- Easy installation
- Long battery life (AA Batteries)
- Distortion indication
- Easy to read count value
- European designed and built
- Exceptional after sales support
- 1 Year Warranty
- No ongoing costs
Optional Extras:
Outdoor Casing
Outdoor Casing (IP54 Rated)
Our LCD Display and Wireless People Counters can be optionally ordered with a robust IP54 rated case.
The IP54 case ensures that the internal electronics are protected from the harsh outdoor elements and provide a high level of protection against water and airborne particles like dust.
The units require no maintenance other than battery changes and for the LCD Display model the 6 digit display is reset with the supplied magnet.
Optional metal brackets are also available for easy installation of the People Counters with the IP54 Outdoor Casing.
Contact for pricing
Mounting Brackets
Mounting brackets for Display People Counters (LCD)
Display people counters include a mounting plate as part of the product design for easy installation on flat surfaces. The following are a list of optional mounting brackets that can be purchased for Display People Counters
Metal Rotational Bracket (x2)
The versatility of the pivoting door sensor holder makes fitting simple in entrances where the mounting location may not be at right angles. These brackets are also provided in a black finish and supplied as a set of two.
Make Inquiry
Metal Angular Bracket (x2)
Suitable for door/frame mounting. Use when fixing the people counters flush against a wall is not possible. This heavy duty bracket also protects your counters from getting knocked out of alignment. These brackets are supplied as a set of two.
Make Inquiry
Micro People Counters (LCD)
The Micro LCD Screen Counter is a completely wireless, reliable, and user-friendly People Counting tool. The incredibly small size of the Micro Counter makes it even easier to mount to virtually any wall or door frame. In addition, the infrared beam is transmitted and received from the side allowing the units to be mounted flat against the walls surrounding a doorway.
The transmitter unit transmits an infrared beam to the receiver unit. When someone passes between the 2 units and breaks the infrared beam, the number on the display screen increases by one. The number includes people entering and exiting a space, so the separate in and out counts can be determined by dividing the number by 2. The Counter can be reset back to zero at any time with the use of a special tool we provide. This Counter can be setup in minutes and requires no maintenance at all.
Features
- Easy installation
- Side fire, very small, discrete
- Battery lifetime up to one year
- Clear display, easy to reset
- The count values are read daily and can be accessed directly
- European designed and built
- 1 year warranty
Specifications
- Dimensions - 83 x 51 x 14 mm
- Material - PMMA – Black
- Power supply - 3V CR2450 Battery
- Battery life - 1 year
- Maximum Distance – 5 Metres / 16 feet(Unobstructed)
- Maximum display count value - 999999 (6 digits)
Included:
- PTX11-1 – Transmitter / PRX11D1 – Receiver
- Resetting tool
- Two 3V CR2450 batteries (already installed)
- Quick installation guide
Make Inquiry
Total count of people in a room/venue
This particular model of Display People Counter offers an accurate means of managing the total capacity of people within a room/venue. The digital display shows the current number of people in the room/venue by simply subtracting the number of people exiting from the number of people entering.

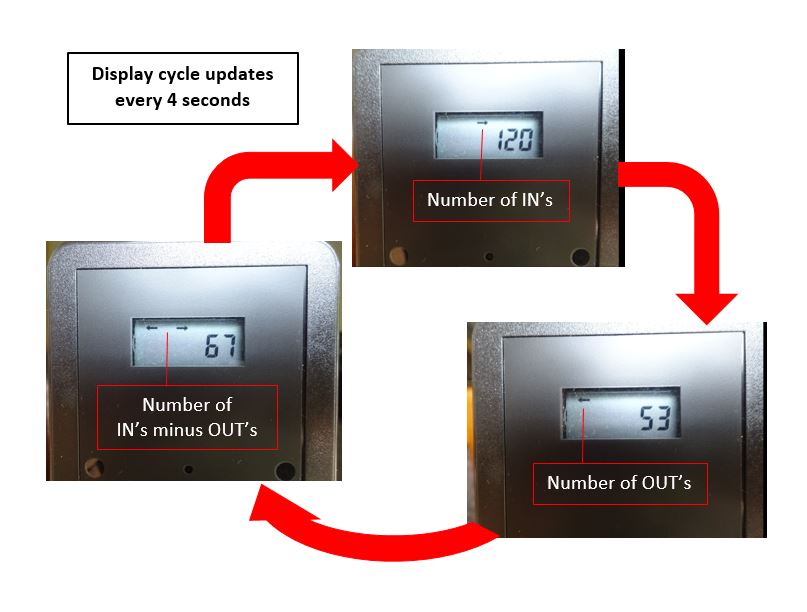

The count number on the digital display constantly updates higher or lower depending on the number of people passing through the counter in either direction. A separate 'IN' and 'OUT' count total is also recorded and displayed.
Set-up and installation is quick and easy, even in variable environments.
Since our people counter system only counts and does not identify people, the privacy of people passing through the counters is guaranteed.
Features
- Long battery life
- Distortion indication
- Easy to read count value
- European designed and built
- 1 year warranty
Specifications
- Dimensions - 116.4 x 68.6 x 22.3 mm
- Material - ABS Plastic - Black
- Power supply - 2 x 1.5V AA
- Power consumption - approximately 120 uA
- Battery life - up to 2 years
- Maximum Distance – 8 Metres / 26 feet (unobstructed)
Included:
- Transmitter / Receiver
- Magnet (key ring) for resetting count value back to zero
- Screwdriver
- 2 x Mounting plate (plastic)
- Four 1.5v AA batteries
- Quick installation guide
Contact for pricing
-
Brochures - People Counters
Video Demonstration
Contact for pricing
Single Side Laser People Counters
Our new Single Side Laser People Counter enables you to count pedestrians and other moving objects via a user-defined counting distance (0.2 to 8 metres) without requiring a separate receiver or reflector. This makes it ideal for use in a wide range of applications including measuring pedestrian traffic on outdoor footpaths, visitor traffic for shopping centre kiosks, objects on a production line and more.
The count data is transmitted every minute to our Sensor Network Gateway (Ethernet or 3G) unit that can be located anywhere within a 30 metre range (Repeater available to extend the range by another 30 metres). The Sensor Network Gateway unit stores the count data and forwards it as data packets at regular intervals to the 'SensorServer™' reporting application hosted on-site or in the cloud.
Our 'SensorServer™' software allows users to analyze the data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours, staffing requirements, calculate customer/sales conversion ratios and analyse production targets.
The 'SensorServer™' software/database is optimized to handle multiple locations and/or people counters for easy viewing and overall analysis. The 'IMMOTION™' software/database is scalable so that additional Sensor Network Gateway's and/or door counters can be added at any time.
General Features
- Easy installation
- Unidirectional
- Single Side Laser
- Configurable distance setting
- European designed and built
- Exceptional after sales support
- 1 Year Warranty
- No ongoing costs
Package Features
Single Side Laser Sensor
Single Side Laser Sensor
The Single Side Laser People Counter consists of a single laser sensor that doesn't require a separate receiver or reflector. It can be configured to count pedestrians or moving objects via a user-defined counting distance of 0.2 to 8 metres. It can count objects in the foreground (e.g. pedestrians on the footpath) whilst ignoring objects in the background (e.g. cars on the road.). Each time a person walks breaks the laser beam, the count increases by one (regardless of direction).
With IP65 rated casing, the Single Side Sensors can be mounted on a building exterior, with connectivity for power and data via a 2 metre cable to the Contact Sensor component located within the building interior.
Contact Sensor
Contact Sensor
The supplied Contact Sensor powers the Single Side Laser Sensor via a 2 metre cable, receives the count data from the Single Side Laser Sensor and wirelessly forwards the data to the Sensor Network Gateway.
The Contact Sensor can power and connect to two separate Single Side Laser Sensors via separate cables.
Sensor Network Gateway
Sensor Network Gateway
The Sensor Network Gateway (SNG) wirelessly communicates with the people counting sensors to receive the latest, up to date, count data from one or more sensors within a 30 metre radius. Once received, the count data is automatically sent at regular intervals to the SensorServer™ software where the count data can be viewed/exported by hour/day/week/month year totals. Each Sensor Network Gateway has the ability to collect the counting data from up to 10 counters.
The Sensor Network Gateway is available in two editions:
Ethernet (SNG10E) Edition
The Ethernet edition (SNG10E) is designed to connect directly into your local network via an Ethernet cable. The SNG10E is ideal for situations where there are Ethernet ports available within a 30 metre range of the entrance where the doorway sensors are installed. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius.
3G (SNG3G) Edition
The 3G Edition (SNG3G) utilises a cellular 3G connection to communicate through to the SensorServer™ software. The SNG3G is ideal for situations where there is no Ethernet ports available near the people counting sensors. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius. The SNG3G requires a full size 3G SIM (not included) and has been tested with the Telstra 3G Mobile Data SIM - please contact us if you would like us to test with an alternative Australian 3G carrier.
To use the SNG3G you will also need to be ensure that the server you install SensorServer™ software onto is externally accessible over the internet.
SensorServer™ Software
SensorServer™ Software
Our SensorServer™ software allows users to analyse count data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours, staffing requirements, calculate customer/sales conversion ratios and analyse production targets.
The SensorServer™ software/database is optimised to handle multiple locations and/or people counters for easy viewing and overall analysis. The SensorServer™ software/database is scalable so that additional Sensor Network Gateway's (SNG) and/or door counters can be added at any time.
SensorServer™ Video Overview
Optional Extras:
Wireless Range Extender
Range Extender for Single Side Laser/Contact Sensor
The Range Extender increases the Wireless Range between the Single Side Laser/Contact Sensor and the Sensor Network Gateway (SNG).
With the Single Side Laser People Counter solution the Sensor Network Gateway device captures the counting data from one or multiple counters and uploads it to a local or remote server every minute. This requires the Sensor Network Gateway to be located anywhere within a range of up to 30 metres (unobstructed) from the Single Side Laser/Contact Sensor. Implementing the Range Extender effectively increases the range between the Sensor Network Gateway device and a Single Side Laser/Contact Sensor by up to a further 30 metre range.
The Range Extender has been designed for ease of installation: when a SNG device is found the LEDs display the signal strength of the detected device. We recommend the Range Extender is installed in a high position to improve the wireless signal via line of sight.
Make Inquiry
SensorServer™ Cloud Hosting
EvolvePlus provides SensorServer™ on a hosted turnkey cloud solution, leaving you free to focus on what you do best without the burden of ensuring the SensorServer™ application is stable, maintained, and secure.
Our cloud solution is run on Amazon's secure and scalable AWS platform based out of Sydney Australia for optimal speed and performance.
Contact for pricing
-
Brochures - People Counters
Video Demonstration
Contact for pricing
Overhead Thermal Counters
Our Overhead Thermal People Counter fits discreetly onto the ceiling facing downwards and counts the people that pass underneath using thermal technology. The sensor is designed to detect the heat emitted by people passing underneath it as infrared radiation.
The units contain imaging optics, sensors, signal processing and interfacing electronics all within a discretely designed moulded housing. High-performance algorithms allow you to count people accurately even in high-volume areas.
The Overhead Thermal People Counters have two count lines allowing separate counting for both "In" and 'Out" directions. The integrated Sensor Network Gateway (Ethernet or 3G) provides the wireless capture of the counting data from one or multiple counters and uploads it to a local or remote server every minute.
For wide opening configurations you can implement additional overhead "nodes" to provide a counting coverage over an extended area.
Our unique IMMOTION software allows users to analyse the data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours and staffing requirements, and helps calculate customer/sales conversion ratios.
Features
- Easy Overhead installation (only requires 240 volt power)
- Wireless Network Data Transfer
- Detailed Analysis via Web Browser
- Single Portal Displays Multiple Locations
- Great Britain/European designed and built
- Exceptional after sales support
- 1 Year Warranty
Package Features
Overhead Thermal Sensor
Overhead Thermal Sensor
Our Overhead Thermal Sensor is a ceiling mounted device designed specifically to count multiple people in both directions. It uses a heat-sensitive sensor and a high speed signal processing controller all neatly contained within a moulded plastic housing for easy mounting to the ceiling.
The downward looking configuration allows the thermal sensor to record a count by detecting the heat emitted by people passing underneath within the sensing area. The sensing area of the detector is a square on the floor and the width approximately equal to mounting height (e.g. when mounted at 3.5m a 60˚ unit ‘sees’ a 3.25 x 3.25m square on the floor).
For wide locations, a number of sensors can be joined together to increase the zone span.
The captured people count data is automatically relayed wirelessly from Overhead Thermal Sensor to the Ethernet Network Gateway device (SNG10E) or 3G Gateway device (SNG103G)
This particular model PCM30C1 has a mounting height of 2.2m to 4.8m. (Optional model PCM31C1 with a mounting height of 4.0m to 7.0m is also available)
Sensor Network Gateway
Sensor Network Gateway
The Sensor Network Gateway (SNG) wirelessly communicates with the people counting sensors to receive the latest, up to date, count data from one or more entrances within a 30 metre radius. Once received, the count data is automatically sent at regular intervals to the IMMOTION™ software where the count data can be viewed/exported by hour/day/week/month year totals.
The Sensor Network Gateway is available in two editions:
Ethernet (SNG10E) Edition
The Ethernet edition (SNG10E) is designed to connect directly into your local network via an Ethernet cable. The SNG10E is ideal for situations where there are Ethernet ports available within a 30 metre range of the entrance where the doorway sensors are installed. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius.
3G (SNG3G) Edition
The 3G Edition (SNG3G) utilises a cellular 3G connection to communicate through to the SensorServer™ software. The SNG3G is ideal for situations where there is no Ethernet ports available near the people counting sensors. This device is able to collect count data from up to 10 door counters/entrances within a 30 metre radius. The SNG3G requires a full size 3G SIM (not included) and has been tested with the Telstra 3G Mobile Data SIM - please contact us if you would like us to test with an alternative Australian 3G carrier.
To use the SNG3G you will also need to be ensure that the server you install IMMOTION™ software onto is externally accessible over the internet.
IMMOTION™ Software
IMMOTION™ Software
Our IMMOTION™ software allows users to analyse count data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours and staffing requirements, and helps calculate customer/sales conversion ratios.
The IMMOTION™ software/database is optimised to handle multiple locations and/or people counters for easy viewing and overall analysis. The IMMOTION™ software/database is scalable so that additional Sensor Network Gateway's (SNG) and/or door counters can be added at any time.
IMMOTION™ Video Overview
Optional Extras:
Wireless Range Extender
Range Extender for Wireless People Counters
The Range Extender increases the Wireless Range between a Wireless People Counter (Network) and the Sensor Network Gateway (SNG).
With the Wireless People Counter (Network) solution the Sensor Network Gateway device captures the counting data from one or multiple counters and uploads it to a local or remote server every minute. This requires the Sensor Network Gateway to be located anywhere within a range of up to 30 metres (unobstructed) from the Wireless People Counter. Implementing the Range Extender effectively increases the range between the Sensor Network Gateway device and a single Wireless People Counter by up to a further 30 metre range.
The Range Extender has been designed for ease of installation: when a SNG device is found the LEDs display the signal strength of the detected device. We recommend the Range Extender is installed in a high position to improve the wireless signal via line of sight.
Make Inquiry
Number of people in a venue at any one time
Our people counters record the number of people entering and exiting a venue in real time. From this information, we can then calculate and display the total number of people in the venue at any one time. This feature is ideal for venues that are required to monitor capacity numbers in real time to comply with liquor licensing laws, venue capacity limits, etc.
The live count total is displayed on a custom styled web page that is compatible with any web-enabled PC, laptop, tablet or smartphone.
The live count total constantly updates higher or lower depending on the number of people entering or leaving the venue. In addition, a separate 'IN' and 'OUT' count total is collected and can be viewed in an hourly, daily, weekly, monthly and yearly breakdown.
As our people counters only count and do not identify people, the privacy of people passing through our counters is assured.
IMMOTION™ Cloud Hosting
EvolvePlus provides IMMOTION™ on a hosted turnkey cloud solution, leaving you free to focus on what you do best without the burden of ensuring the IMMOTION™ application is stable, maintained, and secure.
Our cloud solution is run on Amazon's secure and scalable AWS platform based out of Sydney Australia for optimal speed and performance.
Contact for pricing
-
Smiley Feedback Counter
Contact for pricing
Moodbox Counter
EvolvePlus offers Customer Feedback Counters to gather valuable customer satisfaction information. Our wireless Smiley Feedback and Mood Counter offer a reliable, user-friendly, and affordable solution that will help almost any type of organisation to gain valuable insight to improve customer satisfaction and customer loyalty.
The size and weight of our battery powered Smiley Survey Counters allows for installation almost anywhere. Our counters are designed and built in Europe for the highest quality whilst remaining one of the most cost-effective counters on the market.
The Smiley Feedback Counters are available with choice of 5 separate smiley buttons, with the ability to program button press delay to minimise repetitive button presses. The feedback counter is battery powered for both portability and easy installation, and available with an optional metal brackets for mounting on a stand or wall. It can also be integrated with our Wireless People Counter solution for additional data validation & analysis.
The Smiley Feedback Counter can be integrated with our modular EvolvePlus People Counter solution so that footfall traffic statistics and customer satisfaction feedback are available from a centralised Web Dashboard.
General Features
- Live Customer Satisfaction Results
- Long Life Battery Powered for Portability and Easy Installation
- Web Based Analysis Dashboard
- Wireless Data Transfer
- "Anti-Spam" Functionality via Button Delay
- Choose Smiley or Standard Buttons
- European Designed and Built
- Integrate with People Counter for Data Validation
How it Works
There are three main components within the solution:
1. Smiley Feedback Counters
The Smiley Feedback Counters are battery powered for easy installation and are available with choice of smiley button and single colour button models.
2. SNG - Sensor Network Gateway (the "Base Station”)
The Sensor Network Gateway (SNG) connects wirelessly to the counters to receive the latest, up to date, count data from one or more entrances/areas and is available in either Ethernet or 3G/4G models. Once received, the count data is automatically sent at regular intervals to the IMMOTION software.
3. IMMOTION Software
The IMMOTION software allows organisations to analyse button presses by the hours of the day in both table and pie chart format. The IMMOTION software is available in both On-Premise and Cloud editions.
Package Features
Smiley Feedback Counter
Smiley Feedback Counter
The smiley feedback counter is a battery powered wireless device which allows for easy installation into almost any location. The smiley feedback counter has 5 configurable buttons which when pressed will communicate instantly to the SNG (the "Base Station") which then sends the feedback to the IMMOTION software for reporting and analysis. Button presses are sent out with a time stamp generated by an internal clock.
The smiley feedback counter comes with 2x 3.6v AA lithium batteries that will last up to 1 year with standard use.
Sensor Network Gateway
Sensor Network Gateway
The Sensor Network Gateway (SNG) wirelessly communicates with the smiley feedback counter to receive instant information on which buttons have been pressed. Once received, the data is automatically sent at regular intervals to the IMMOTION™ software where the count data can be viewed for reporting.
The Sensor Network Gateway is available in two editions:
Ethernet (SNG10E) Edition
The Ethernet edition (SNG10E) is designed to connect directly into your local network via an Ethernet cable. The SNG10E is ideal for situations where there are Ethernet ports available within a 30 metre range of where the smiley feedback counters are installed. This device is able to collect count data from up to 10 feedback counters within a 30 metre radius.
3G (SNG3G) Edition
The 3G Edition (SNG3G) utilises a cellular 3G connection to communicate through to the IMMOTION™ software. The SNG3G is ideal for situations where there is no Ethernet ports available near the smiley feedback counters. This device is able to collect count data from up to 10 feedback counters within a 30 metre radius. The SNG3G requires a full size 3G SIM (not included) and has been tested with the Telstra 3G Mobile Data SIM - please contact us if you would like us to test with an alternative Australian 3G carrier.
To use the SNG3G you will also need to be ensure that the server you install IMMOTION™ software onto is externally accessible over the internet.
IMMOTION™ Software
IMMOTION™ Software
Our IMMOTION™ software allows organisations to analyse button presses by the hours of the day in both table and pie chart format. This information provides valuable feedback that allows you to make data driven decisions on the survey feedback from your customers.
The IMMOTION™ software/database is optimised to handle multiple feedback counters for easy viewing and overall analysis. The IMMOTION™ software/database is scalable so that additional Sensor Network Gateway's (SNG) and/or smiley feedback counters can be added at any time.
IMMOTION™ Video Overview
Optional Extras:
Wireless Range Extender
Range Extender for Wireless People Counters
The Range Extender increases the Wireless Range between a Wireless People Counter (Network) and the Sensor Network Gateway (SNG).
With the Wireless People Counter (Network) solution the Sensor Network Gateway device captures the counting data from one or multiple counters and uploads it to a local or remote server every minute. This requires the Sensor Network Gateway to be located anywhere within a range of up to 30 metres (unobstructed) from the Wireless People Counter. Implementing the Range Extender effectively increases the range between the Sensor Network Gateway device and a single Wireless People Counter by up to a further 30 metre range.
The Range Extender has been designed for ease of installation: when a SNG device is found the LEDs display the signal strength of the detected device. We recommend the Range Extender is installed in a high position to improve the wireless signal via line of sight.
Make Inquiry
IMMOTION™ Cloud Hosting
EvolvePlus provides SensorServer™ on a hosted turnkey cloud solution, leaving you free to focus on what you do best without the burden of ensuring the SensorServer™ application is stable, maintained, and secure.
Our cloud solution is run on Amazon's secure and scalable AWS platform based out of Sydney Australia for optimal speed and performance.
Contact for pricing
